About Our 7' Wide Utility Trailer Plans

The information on this page applies to all of our 7' wide tandem axle utility trailer plans. The main difference between our 7' wide tandem axle utility trailers is the specs. You can find the specs. for each of the trailers on their individual pages. You will find those links at the bottom of this page.

About The Information On This Page

To see the individual specs for each utility trailer, visit the page for the individual utility trailer plans by selecting it from one of links below.

These 7' wide utility trailers are very easy to build. A couple items I recommend you get if you do not already own them that will make life easier while building the frame are at least two if not four of the 45/90 degree welders clamps. Now you can find these fairly cheap as long as you don’t feel the need to purchase the big brand names. I have seen them on Amazon.com for under $20. You do not have to have them to build these trailers, but it sure makes life easier when it comes to getting the main frame square so you can put your first tack welds on the corners.

Our 7' wide utility landscape trailer plans all come with complete step by step building instructions, materials list and several free bonus files including the step by step instructions on installing the electric brakes.

All of our 7' wide utility trailer plans contain 45+ pages to eliminate any guess work.

gallery/7' u h

Our 7 foot wide trailer plans have become very popular because they are a good sturdy trailer, easy to build and with two 3500# axles they have a gvwr of 7000# which is usually plenty for most folks.

All of our trailer plans come with several free bonus files including one with the step by step instructions and photos for installing electric brakes.

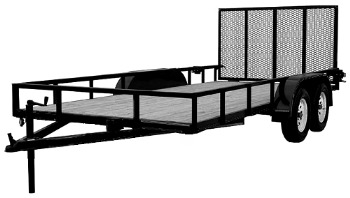

The 7' wide utility trailer plans also come with the plans and instructions for building the 4’ ramp gate.
We have four sets of plans of 7' wide tandem axle utility trailer plans to choose from. You have a choice of the 12’, the 14’, the 16’ or the 18’.

Our 7' wide trailer plans give you the option of taking advantage of a great deal and building you trailer from a trailer kit.

About The Trailer Parts Kit

The kit is only an option, if you would rather purchase the parts on your own or maybe you already have some of the parts you would like to use, that is fine. These plans give you complete step by step instructions for building the trailer including the materials list. The only reason we included the information for the parts kit in these plans is because we thought it might save you some money.

The kit includes the following parts and components.
95" 3500# Tandem Axle Trailer Parts Kit:
Kit includes:
(2) 3500# painted utility trailer axle with a track of 95''
(4) 5 lug painted hubs and bearings with 4.5'' spread -
or - (4) 5 lug painted hubs and bearings with 5.0'' spread
(4) 25 ¼ 4 leaf double eye springs (1750#)
(2) 1.5 front spring hanger (black iron)
(2) 3.25 center hanger (black iron)
(2) 2 3/8'' round black iron tie plate kit (includes 4 ubolts & 2 plates)
(8) 3'' black iron shackle links
(14) 9/16 x 3 ½'' black iron grade 5 spring bolts with nuts
(4) 2 3/8'' round black iron spring pads
(1) 2000# top wind a frame jack
(1) 5000# 2'' a frame coupler
(1) Utility trailer light kit
(1) 1/4 x 48'' Safety Chain

The kit is only an option, if you would rather purchase the parts on your own or maybe you already have some of the parts you would like to use, that is fine. These plans give you complete step by step instructions for building the trailer including the materials list. The only reason we included the information for the parts kit in these plans is because we thought it might save you some money.

Also Included

Our plans also include the instructions for building the 4' ramp gate as well as the angle iron ramps in case you should need them. They also include optional instructions for building the trailer with a dovetail if you should want one. All of our plans also include a free file with step by step instructions for installing electric brakes as well.

All of these trailer plans have been put into high quality pdf format and will be delivered by instant download as soon as your payment is complete.
